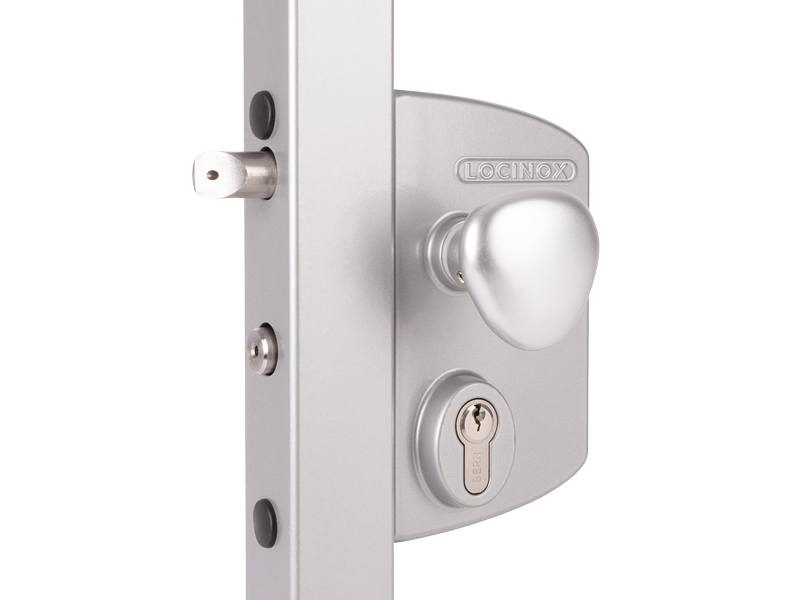

Electric Lock

The Locinox Electric Lock provides an effective access control option.

The Locinox Electrical Lock is complete with aluminium housing and also stainless steel mechanism. However, if the lock is under power, the handles are blocked. Moreover, the 20 mm continuous adjustability of the bolts also allows a perfect alignment of your locking mechanism. Furthermore, a solid stainless steel deadbolt with a 23 mm throw guarantees a secure locking.

locinox-electric-locklocinox-electric-lock-zilv

Further still, the use of the Locinox Electric Lock is an effective way of controlling access on your pedestrian gates when used in conjunction with an access control system. The 12 volt supply however, is a standard and also safe voltage with such systems. Therefore, the lock also has an indicator light to tell at a glance when the gate is locked. Furthermore, the electric locking can also be securely over ridden with a keyed dead lock if desired.

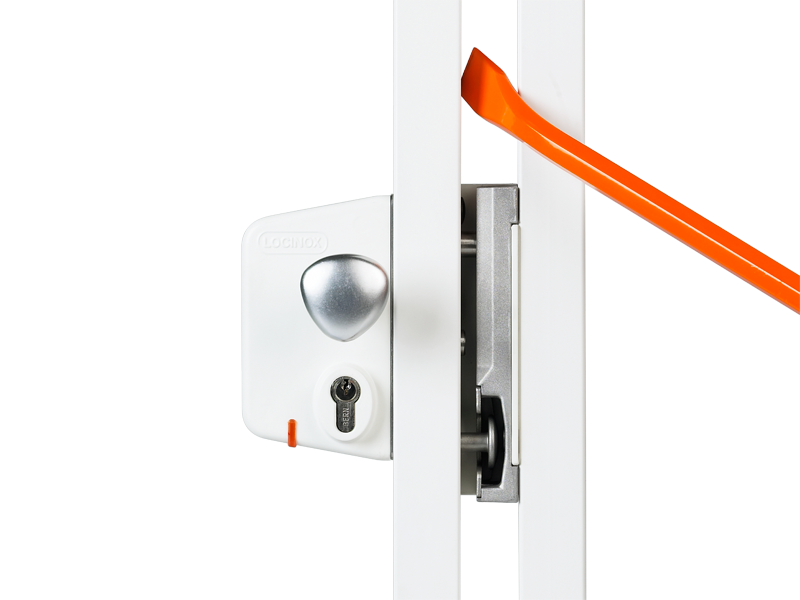

Most Importantly, for further security the Locinox Security Keep can also be added (at extra cost) to prevent unauthorized access by levering the gate with a crow bar.

Specifications
  • ISO 9227 KTL / E-coated lockbox withstands 1000 hours of salt spray test
  • Voltage: 12 V AC/DC
  • Current: 0,3 A
  • Loss of power => Lock will release the knobs (fail open)
  • Blocking or releasing of the knobs
  • Easy left or right changing of the self-latching bolt
  • Throw of the deadbolt, 23 mm in 1 turn of the key
  • Key-operated self-latching bolt
  • Adjustment of the bolts up to 20 mm continuous without removing the lockbox
  • 4-hole fixing with two hexagon socket head screws
  • Center distance bolts: 60 mm
  • Exchangeable with all Locinox locks

Features

electric-lock-12velectric-lock-180electric-lock-20mmelectric-lock-featureelectric-lock-abelectric-lock-stainless-steelelectric-lock-tested

Available in following RAL-colours

electric-lock-ral-6005  electric-lock-ral-6009  electric-lock-ral-9005  electric-lock-ral-9010  electric-lock-zilv  electric-lock-ral-7016
Drawings

electric-lock-drawings

Downloads

Industrial Quality

Locinox products are by all means, of industrial quality. Even more, they are tested extensively by our R&D department in the most extreme circumstances.

Every product is also tested a minimum of 500,000 movements before bringing it to the market. Using Locinox products, specifically extends the life of your gates and fences.

Ease of Installation

“Time however, is money”, certainly in our industry. Therefore, this is why our products are easy to implement in your production process. Moreover, you will also save a lot of time when installing on site thanks to our Plug&Play design and also our patented Quick-Fix fixing system.

Lastly, Quick-Fix are pre-fitted on our products, your products will also be installed in a snap: just tighten them up, then that’s it. Therefore, the patented Quick-Fix system ensures the firm fixing of our products.

Installations Booklet also available!

.
