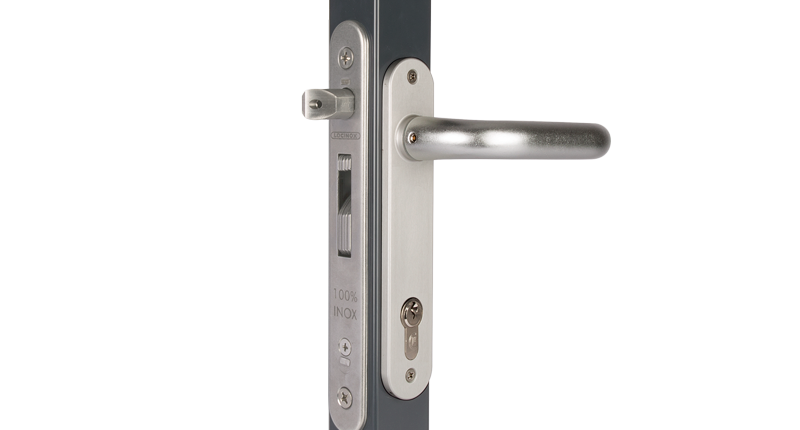

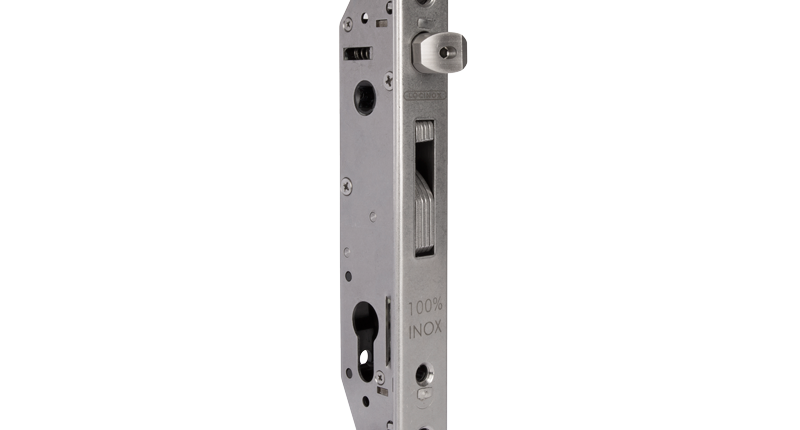

FortyLock

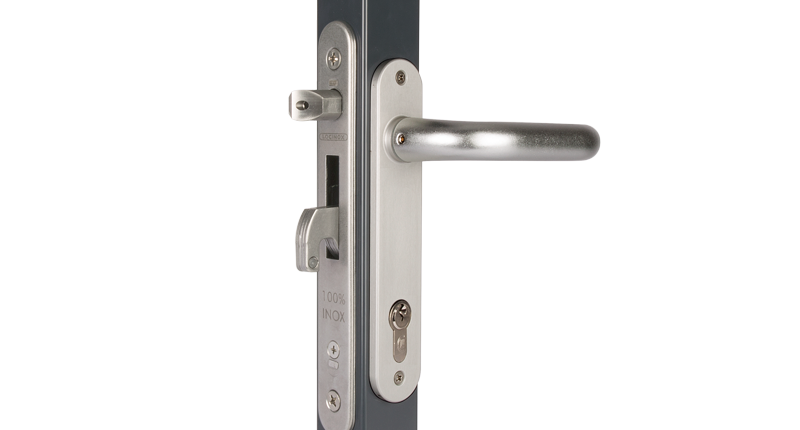

Insert lock with 20 mm backset for profiles of 40 mm

Insert lock with 100% stainless steel mechanism. The stainless steel and also adjustable self-latching bolt combined with the right keep guarantee a strong and also solid closed gate where the gate wings can not be pulled apart or forced open. Furthermore, the lock can also be installed on metal, aluminum and PVC gates. Therefore, thanks to the patented “Click-It” system, mounting the lock can also be done in a matter of seconds.

Specifications
  • Lockmechanism with cover plate against dirt penetration
  • Patented “Click-It” system makes tapping tread in the profile unnecessary
  • Continuous adjustment of the daybolt up to 10 mm without dismounting the lockbox
  • Key-operated self-latching bolt
  • Mechanism, hook, frontplate, latchbolt: stainless steel
  • Easy left or right changing of the self-latching daybolt
  • Stainless steel hook for secure anchoring
  • Throw of the hook: 21 mm
  • Center-distance cylinder <=> handles => 92 mm
  • Optional: Cover shield for handle & cylinder holes in aluminium, polyamide or stainless steel

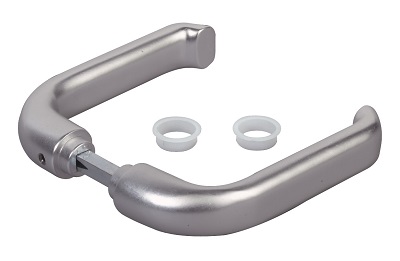

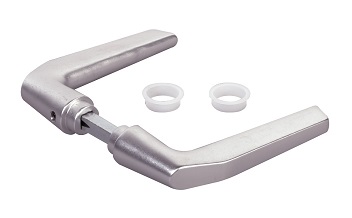

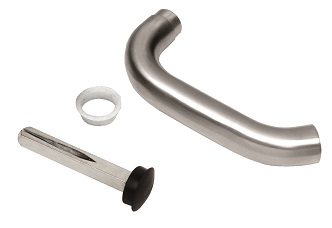

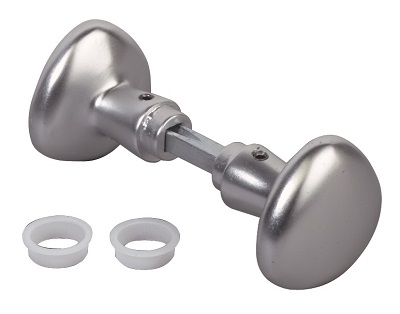

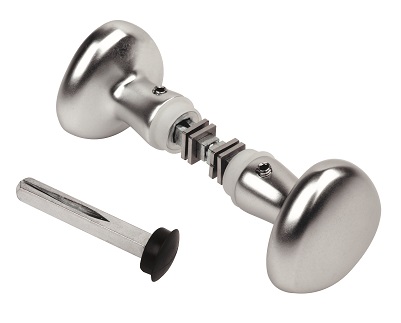

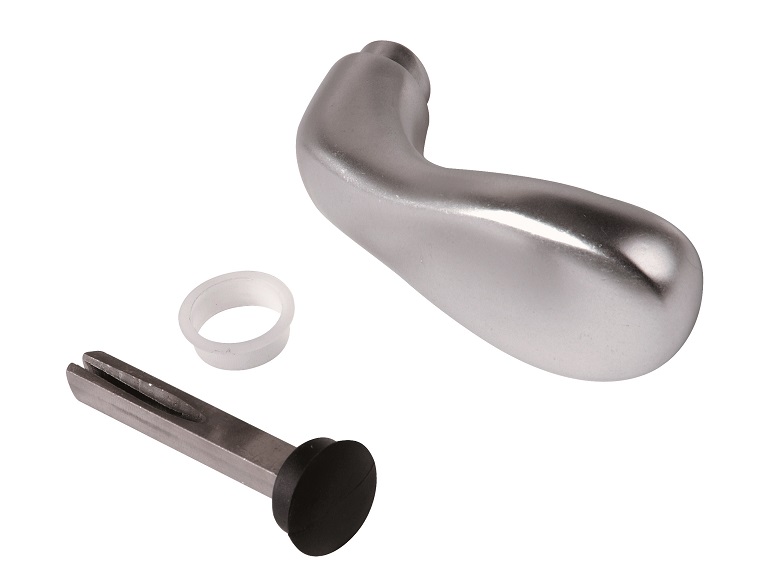

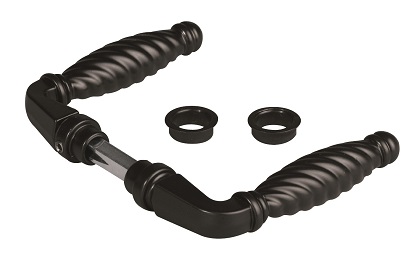

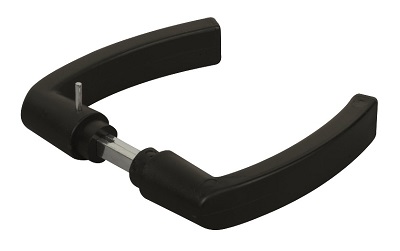

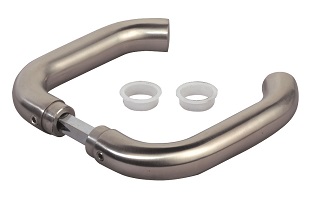

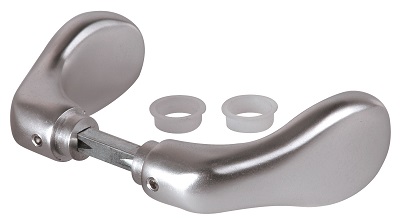

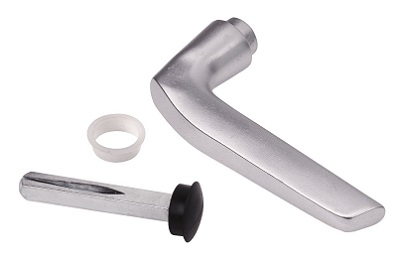

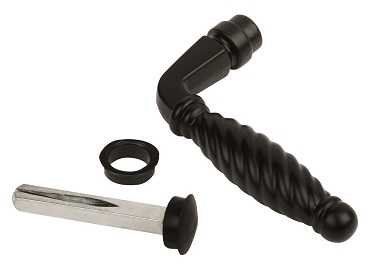

  • Handles to be ordered separately
  • Compatible with all Europrofile cylinders
  • Available: 23/03/2016

Features

insert-lock-stainless-steel  insert-lock-10mm  insert-lock-180  insert-lock-ab  insert-lock-tested
Drawing

insert-lock-drawing

.

.

Industrial Quality

Locinox products are by all means, of industrial quality. Even more, they are tested extensively by our R&D department in the most extreme circumstances.

Every product is also tested a minimum of 500,000 movements before bringing it to the market. Using Locinox products, specifically extends the life of your gates and fences.

.

Ease of Installation

“Time however, is money”, certainly in our industry. Therefore, this is why our products are easy to implement in your production process. Moreover, you will also save a lot of time when installing on site thanks to our Plug&Play design and our patented Quick-Fix fixing system.

Lastly, Quick-Fix are pre-fitted on our products, your products will also be installed in a snap: just tighten them up, then that’s it. Therefore, the patented Quick-Fix system ensures the firm fixing of our products.

Installations Booklet also available!

.

.
