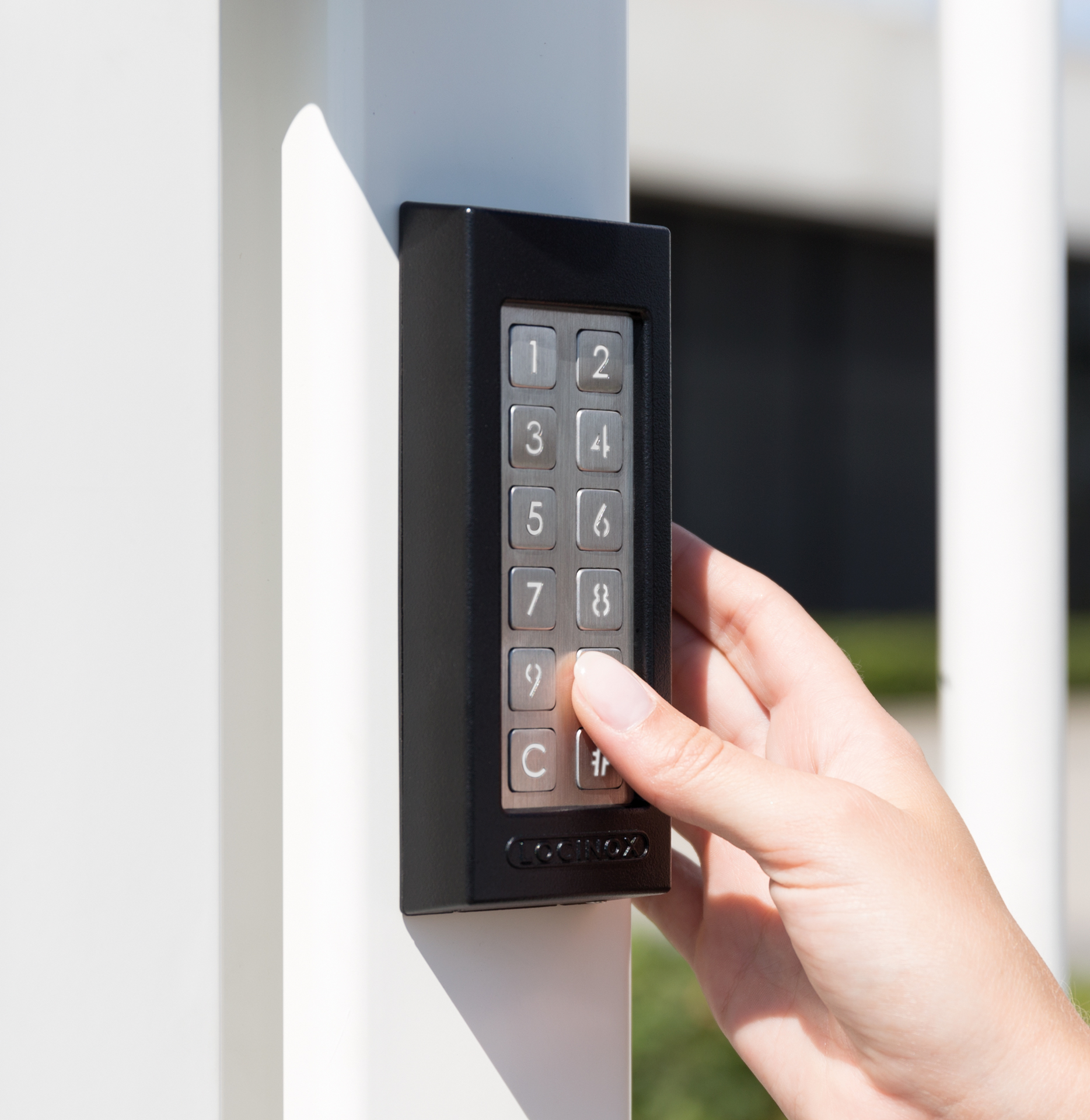

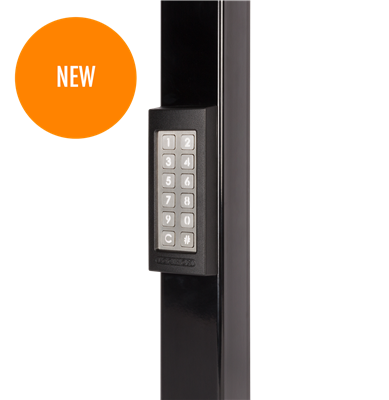

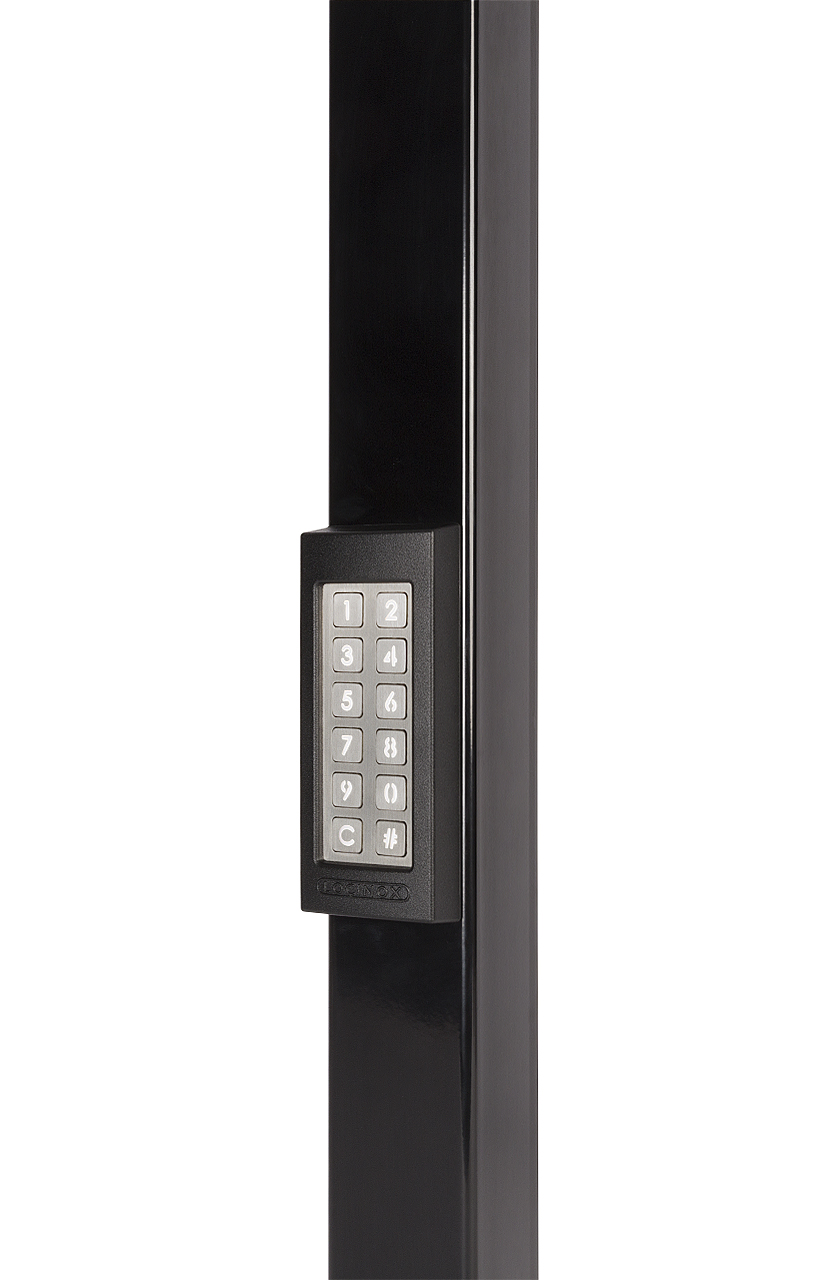

SLIMSTONE the Locinox Keypad


The Locinox keypad, Slimstone, with integrated LED lighting is unique in its kind thanks to its strength. The keypad was developed and tested for use in the most extreme weather conditions to guarantee access control in all circumstances. Assembly and mounting are very easy. Thanks to the integrated relay, with a common open and closed contact, both the coupling to Locinox and other automation products and the programming of the SlimStone is very easy. Provided with innovative Quick-Fix or alternative fixing for wood and stone.



  • Complies with IP68 – Extremely resistant to water and dust
  • Stainless steel front plate and keys, aluminium housing with structured lacquer
  • Housing resistant to vandalism with extra protective edge around the keys
  • LED Lighting under keys and LED indication for statuses
  • 2m connection cable included
  • Easy installation and connection thanks to integrated relay
  • Easy programming of up to 100 codes
  • Time range adjustable between pulse and timer mode (100ms-99s)
  • Frost-free thanks to smart heating element
  • Remote disconnection through relay contact
  • Push buttons tested with over 1,000,000 pushes
  • Tested from -30° up to +85° Celsius
  • Including Quick-Fix and fixing for wood and stone
  • Working voltage keypad from 10 up to 26 Volt AC/DC
  • Current: 1.0A (with heating) / Pmax = 13.5W (with max heating)
  • Switching relay: 1 x NO – 1 x NC – 1 x COM (Max. 2A, 60W, 26V AC/DC)


Available in the following RAL-Colours:
